Product Desciption

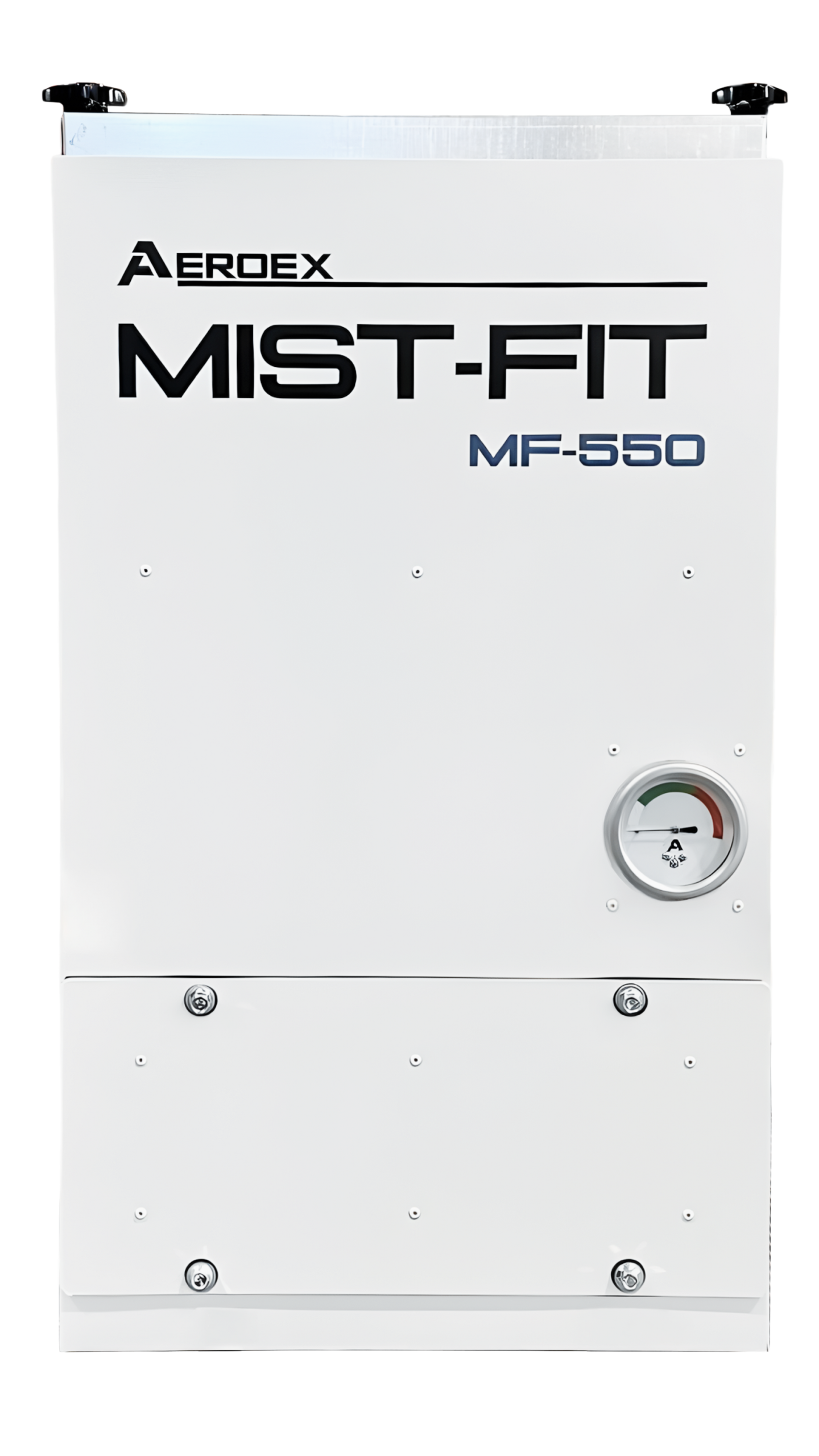

Compact mist collector with a fibre bed filter at an affordable price.
Fibre bed filtration has proven to be superior to other filter technologies.
Ideal for high pressure coolant and oil applications.
Oil drains back to cnc machine.
With a footprint of 15” x 15” and 65 lbs, it is easily machine mounted.
Eliminates mist, smoke and fine particles.

Visit Our Resource library

Product Highlights

Air Flow

500

- 600

cfm

Volume

Up to 200 ft³

Quick Installation

Fast Lead Times

Modular Design

MF-550

Machine Specific

Air Flow

500 - 600 cfm

Machine Tool Enclosure Recommended Volume

Up to 200 ft³

Motor

0.75 hp

Coolant

Yes

Oil

Yes

pH limit

5.8 – 9.8

Physical Specification

Inlet Connection

6 ” Ø

Sound

68 dB(A)

Voltage (Amps)

115/1/60 (4.9)
220/1/60 (2.5)
230/3/60 (1.57)
460/3/60 (0.95)

Temp limit

125ºF / 50ºC

Weight

65 lbs / 75 lbs with HEPA filter

Length

15""

Width

15”

Height

26”
30” with 95% HEPA filter
34” with 99.9% HEPA filter

Filters

HEPA Filter

Optional

Activated Carbon Filter

Optional

Specification	MF-550	MF-560	MF-1050	MF-1950
Air Flow	500 – 600 cfm	500 – 600 cfm	900 – 1100 cfm	1900 – 2000 cfm
Machine Tool Ecn. Reccommended Vol.	Up to 250 ft³	Up to 250 ft³	Up to 450 ft³	Up to 2000 ft³
Motor	0.75hp	0.75hp	1.5hp	3hp
Voltage(Amps)	115/1/60 (4.9) 220/1/60 (2.5) 230/3/60 (1.57) 460/3/60 (0.95)	115/1/60 (4.9) 220/1/60 (2.5) 230/3/60 (1.57) 460/3/60 (0.95)	230/3/60 (2.7) 460/3/60 (1.6)	230/3/60 (6.0) 460/3/60 (3.3)
Inlet Connection (standard)	6” Ø	6” Ø	8” Ø	12” Ø
Coolant
High Pressure Coolant
Oil
High Pressure Oil
Heavy Smoke
Sound	68 dB(A)	68 dB(A)	69 dB(A)	72 dB(A)
pH limit	5.8 – 9.8	5.8 – 9.8	5.8 – 9.8	5.8 – 9.8
Temp limit	50°C / 125 °F	50°C / 125 °F	50°C / 125 °F	50°C / 125 °F

Learn How The Mist Fit Works

The Innovative Mechanical Element separates up to 90%of the oil mist and swarf. The smooth metal surfaces quickly drains fluid back to the machine.

The Demister Element supports the 1st stage to ensure up to 95% of the mist and swarf is removed with washable filters.

Our advanced depth-loading Fibrebed filter is expertly designed to capture fine mist particles with a MERV 15 rating, offering an impressive filter life of 1-3 years for long-lasting performance and reliability

Upgrade your workspace with the Mist-Fit series.

Experience improved air quality and increased efficiency firsthand.
Don't miss out - try it for free today and experience the Aeroex advantage!

Customers Google Reviews

Frequently Asked Questions about the MF-550

To help you make an informed decision, we've compiled a list of commonly asked questions about this high-performing collector solution.

The Mist-Fit is designed for easy installation and low maintenance. Its modular design allows for quick setup, and the washable filters minimize ongoing maintenance costs.

Yes, the Mist-Fit is designed to manage high-pressure oil mist, especially with its optional Pre-Filter Box, making it highly effective for demanding applications like Swiss screw machines.

The Mist-Fit utilizes depth-loading fibre bed filters with a MERV 15 rating, extending filter life up to 3 years without the need for HEPA filters in most applications, reducing maintenance frequency.

The Mist-Fit offers high-performance mist collection in a compact, modular design. It effectively removes coolant and oil mist while maintaining a small footprint, making it ideal for space-constrained environments.
