MAV-600

Maverick 600

Name: MAVERICK 600
Brand: Aeroex Technologies
SKU: MAV-600
Availability: InStock

In Stock

18 Total Reviews

Homepage

MAV-600

Maverick 600

In Stock

Product Desciption

Maverick mist collectors unite fibrebed-HEPA filtration and smart monitoring to deliver plug-free, 24/7 clean air.
Digital 4–20 mA gauges and dual-colour lights alert crews before pressure spikes, preventing costly downtime.
Convertible inlets swap between vertical direct-mount and horizontal ducting, fitting any CNC, cell, or central system.
Proprietary vibration-isolated baseplate bolts on in minutes, guaranteeing rigid, alignment-safe installation.
Six models, 400–4 000 CFM, scale from single spindles to full-shop mist networks.
Self-draining filters run 3–5 years, slashing consumables and maintenance labour.
99.97 % efficiency scrubs oil mist, smoke, ultrafines—even with high-pressure coolant.
Integration kits sync start/stop and interlocks with machine controls, unlocking true lights-out automation.

Visit Our Resource library

Product Highlights

Air Flow

650

- 750

cfm

Volume

Up to 300 ft³

Quick Installation

Fast Lead Times

Modular Design

Maverick 600

Machine Specific

Air Flow

650 - 750 cfm

Machine Tool Enclosure Recommended Volume

Up to 300 ft³

Motor

1hp hp

Coolant

Yes

Oil

Yes

pH limit

5.8 – 12

Physical Specification

Inlet Connection

08 ” Ø

Sound

70 dB(A)

Voltage (Amps)

230/3/60(3.2)
460/3/60(1.6)
575/3/60(1.24)

Temp limit

70 °C / 160 °F

Weight

230 lbs

Length

21" frame, 32" overall"

Width

21”

Height

38"

Filters

HEPA Filter

Standard

Activated Carbon Filter

Optional

Maverick unites fibrebed-HEPA filtration, monitoring, modular mounts, 400–4 000 CFM models—delivering cleaner air, longer tooling life, lower costs.

Learn More How the MAV-600 Works

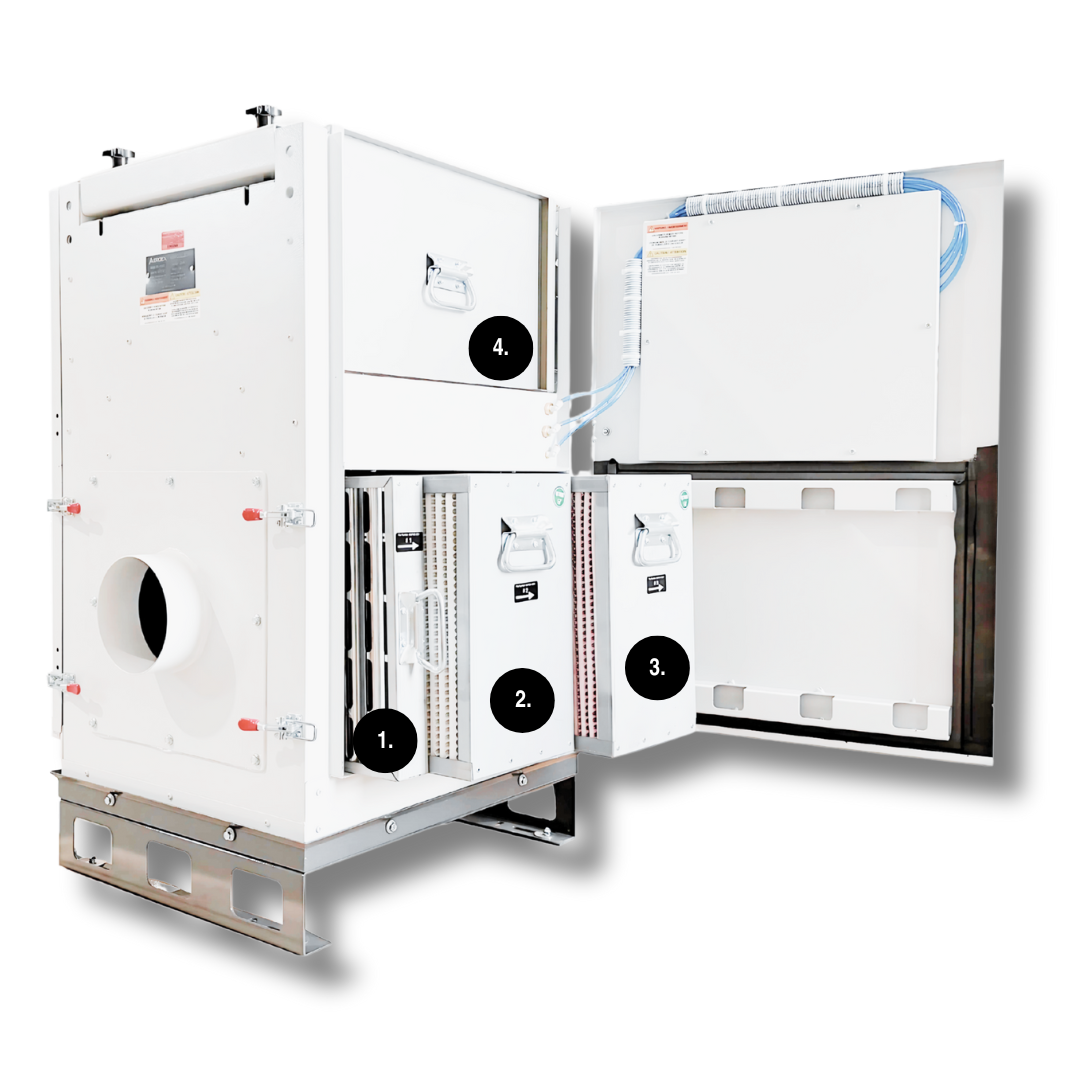

1st Stage - Mechanical Element: Mechanical Element: This stage uses smooth metal surfaces and strategically placed baffle plates to separate up to 90% of heavier oil mist and swarf from the airflow. The separated fluids quickly drain back to the machine sump, reducing waste and preventing premature filter saturation downstream.

2nd Stage: Pleated Depth-Loading Fibrebed Filter: Rated MERV-13 and building on the previous stage, this filter offers higher efficiency by capturing finer mist and smoke particles. Its advanced depth-loading construction provides a significantly increased surface area compared to standard filters, which improves filtration capacity and helps extend service intervals.

3rd Stage: Pleated Depth-Loading Fibrebed Filter: Rated MERV-14, this high-performance filter features a depth-loading design that provides up to 25 times more surface area than standard filters. This increased capacity significantly extends its service life, typically lasting between 2 to 4 years depending on usage and environment.

4th Stage – Certified HEPA Filter: This final polishing stage is available in two efficiency options—95% (Rated MERV-16) or up to 99.97% (Rated MERV-17)—and captures the smallest submicron particles, including mist, smoke, and aerosols. Designed for critical air quality, it ensures the exhaust air meets stringent environmental and safety standards.

Upgrade your workspace with the Maverick series.

Experience improved air quality and increased efficiency firsthand.
Don't miss out - try it for free today and experience the Aeroex advantage!

Customers Google Reviews

Frequently Asked Questions about the MAV-600

To help you make an informed decision, we've compiled a list of commonly asked questions about this high-performing collector solution.

Absolutely. Models up to 4 000 CFM support ducted, multi-machine systems, giving you one uniform solution across the entire shop floor.

No. With multi-stage fibrebed and standard HEPA, service intervals are typically 3–5 years, even in high-pressure coolant applications.

They monitor differential pressure in real time, output a 4–20 mA signal to your PLC or lights-out dashboard, and trigger visual alarms when filters approach end of life—preventing unplanned stoppages.

Yes. Choose from direct-mount, suspended, wall, or stand-and-hose kits to match virtually any CNC, grinder, or EDM footprint.

Maverick pairs Aeroex’s industry-leading fibrebed/HEPA stack with digital gauges and status lights as standard, plus modular bases and electrical I/O. You get the longest filter life on the market and the data you need to schedule maintenance proactively.
